Thunderbolt 4 docks bottleneck your laptop
TB4 caps at 40 Gbps and one external 4K display per port. If you've got TB5, that's leaving 200% of your bandwidth on the table — and you can't run the dual 8K monitors your laptop supports.
Anker Prime · Authorized retailer

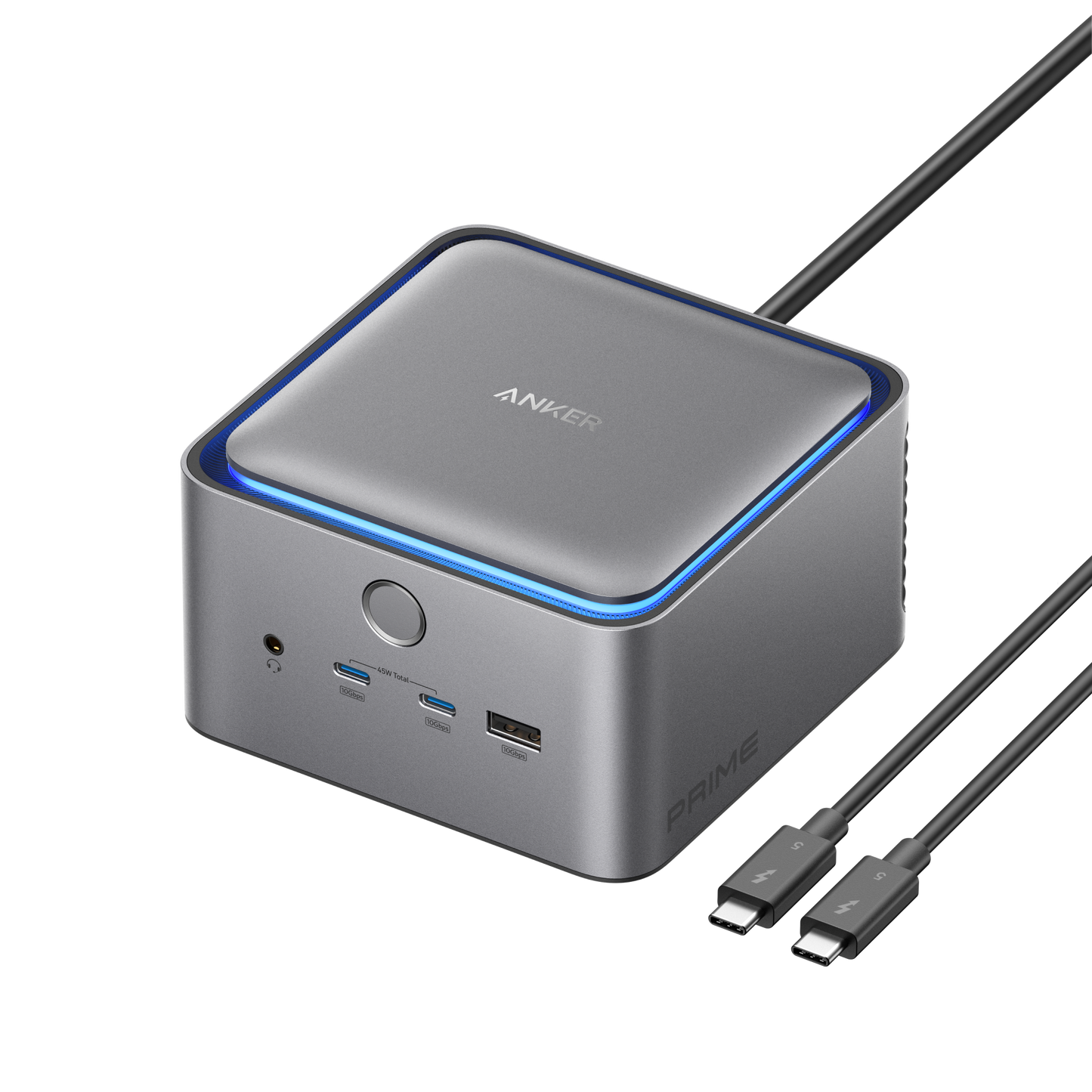

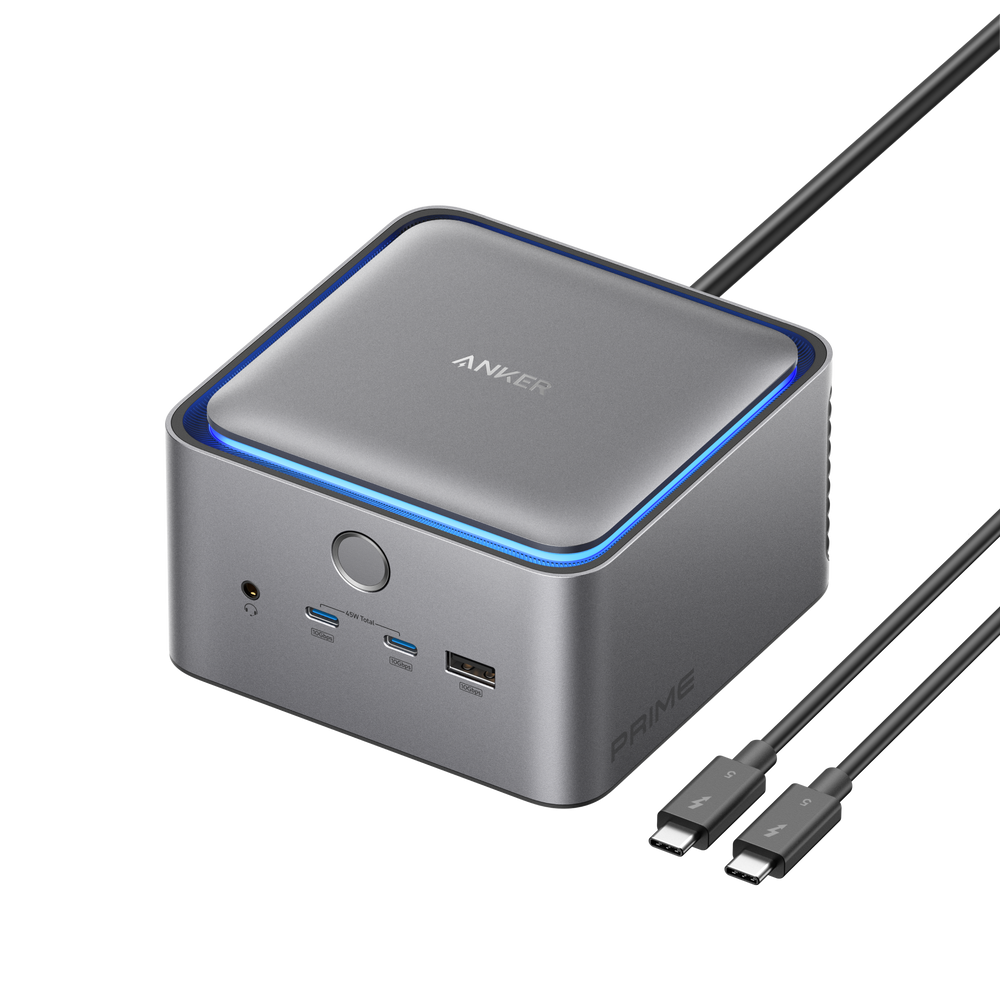

Anker Prime TB5 Docking Station
The flagship workstation dock for Thunderbolt 5 laptops. 14-in-1 connectivity, 140W laptop charging, up to dual 8K@60Hz displays, and 120 Gbps data transfer — three times faster than Thunderbolt 4. Built for professionals who can't compromise on bandwidth, displays, or charging speed.
140W laptop chargingDual 8K@60Hz120 Gbps data
$399.99
In stock · ships same day when available
As low as $34/mo with Affirm · 0% APR available
Secure Checkout
Free US Shipping
Authorized Anker Retailer
Genuine Anker · ships fastModel A83B5 · Gray
14-IN-1Most ports of any Anker dock
140WMacBook Pro 16" full-speed charging
8KDual 8K@60Hz display support
120GBPS3× faster than Thunderbolt 4
Why this matters
Thunderbolt 5 is the new standard. Don't bottleneck it.
You bought a 2025 Thunderbolt 5 laptop — MacBook Pro M4, ASUS ProArt, Razer Blade — for a reason. Pairing it with an older Thunderbolt 4 dock cuts your bandwidth in half and locks you out of dual 8K displays. The Anker Prime TB5 Dock is built to keep up.
Daisy-chained adapters are unreliable
Mixing USB-C hubs, USB-A dongles, HDMI splitters, and Ethernet adapters means flaky displays, dropped data, and dangling cables. One dock — 14 ports — solves it cleanly.
Your laptop can't charge under load
Most docks deliver 65–100W of charging power. A 16" MacBook Pro under sustained load draws 140W. The Prime TB5 delivers exactly that via PD 3.1 — full speed, no throttling.
Built for high-performance workstations
One cable. Two 8K monitors. Full laptop power.
You shouldn't need three docks, four dongles, and a power brick to run a Thunderbolt 5 workstation. The Prime TB5 connects everything through a single Thunderbolt 5 cable — displays, storage, network, peripherals, and 140W of charging.
Upgrade my workstationDual 8K@60Hz display support
Two Thunderbolt 5 downstream ports each drive a single 8K@60Hz monitor (Windows). Plus HDMI 2.1 and DisplayPort 2.1 outputs for mixed-source setups. Run two 8K editors, two 6K Pro Display XDRs, or four 4K@60Hz screens.
140W laptop charging via PD 3.1
The Thunderbolt 5 upstream port supplies the full 140W your MacBook Pro 16", Dell XPS 17, or ASUS ProArt needs to charge at full speed under heavy load — no throttling, no dipping into battery during long renders.
120 Gbps data transfer
Move a 150 GB ProRes file or 8K timeline in roughly 25 seconds. Three times faster than Thunderbolt 4 — finally fast enough to keep up with NVMe external SSDs and 8K video workflows.
See it in detail
Mac mini-sized power for your desk.
Compact 4.6 × 4.6 × 3.0 inch chassis — fits beside a Mac mini or Mac Studio without crowding your setup. Interactive blue LED accent light, active cooling, and all 14 ports laid out for clean cable management.
Will it work for you?
Is the Prime TB5 right for your setup?
This is a premium Thunderbolt 5 dock, not a universal USB-C hub. Compatibility is specific — check below before ordering.
Good fit if...
- ✓Your laptop has a Thunderbolt 5 port (2025+ MacBook Pro M4 with TB5, ASUS ProArt P16, Razer Blade 16/18, Dell XPS 17, MSI Creator series).
- ✓You're running macOS 15 or later on Apple Silicon, or Windows 11 23H2 or later.
- ✓You need dual 8K, dual 6K, or dual 4K displays — or the bandwidth headroom for future high-resolution workflows.
- ✓You move large media files (8K video, RAW photo libraries, ProRes timelines) and want NVMe-class speeds across the dock.
Check first if...
- !Your laptop is Thunderbolt 3 or 4 only. The dock works (downcompatible) but caps at TB4 speeds — the cheaper Anker 778 Thunderbolt 4 dock or 575 USB-C dock is better value.
- !You use a standard M1, M2, or M3 MacBook (non-Pro/Max). Apple Silicon limits these to one external display via Thunderbolt — you can't unlock dual 8K.
- !You run ChromeOS or Linux. Not officially supported by Anker for this dock.
- !You need three external monitors simultaneously. Most TB5 laptops top out at dual external displays through one upstream port.
Complete specs
Every key detail up front.
Everything you need to know before you order. Full Anker spec sheet below.
14Total connections
140WLaptop charging via PD 3.1
120GBPSMax data transfer via TB5
8KDual @60Hz display output
Product
Anker Prime Thunderbolt 5 Docking Station (14-in-1, 140W, 8K)
Model
A83B5 · Gray
Laptop compatibility
Thunderbolt 5 laptops (2025+ MacBook Pro M4, ASUS ProArt, Dell XPS 17, Razer Blade, MSI Creator). Downcompatible with TB4 at lower speeds.
Operating system
macOS 15+ (Apple Silicon) and Windows 11 23H2+. Not supported: ChromeOS, Linux, Intel MacBooks.
Upstream port
1× Thunderbolt 5 (140W charging, PD 3.1, 120 Gbps data)
Downstream Thunderbolt
2× Thunderbolt 5 (15W each, 8K@60Hz display support per port)
USB-A ports
3× USB-A 10 Gbps
USB-C ports (front)
2× USB-C 10 Gbps, 45W shared (charging + data, no video output)
Display outputs
1× HDMI 2.1 + 1× DisplayPort 2.1 (only one usable at a time)
Network
2.5 Gbps Ethernet
Other ports
1× SD card, 1× TF card (UHS-I), 1× 3.5mm audio combo, AC input
Dimensions
4.6 × 4.6 × 3.0 inches (Mac mini footprint)

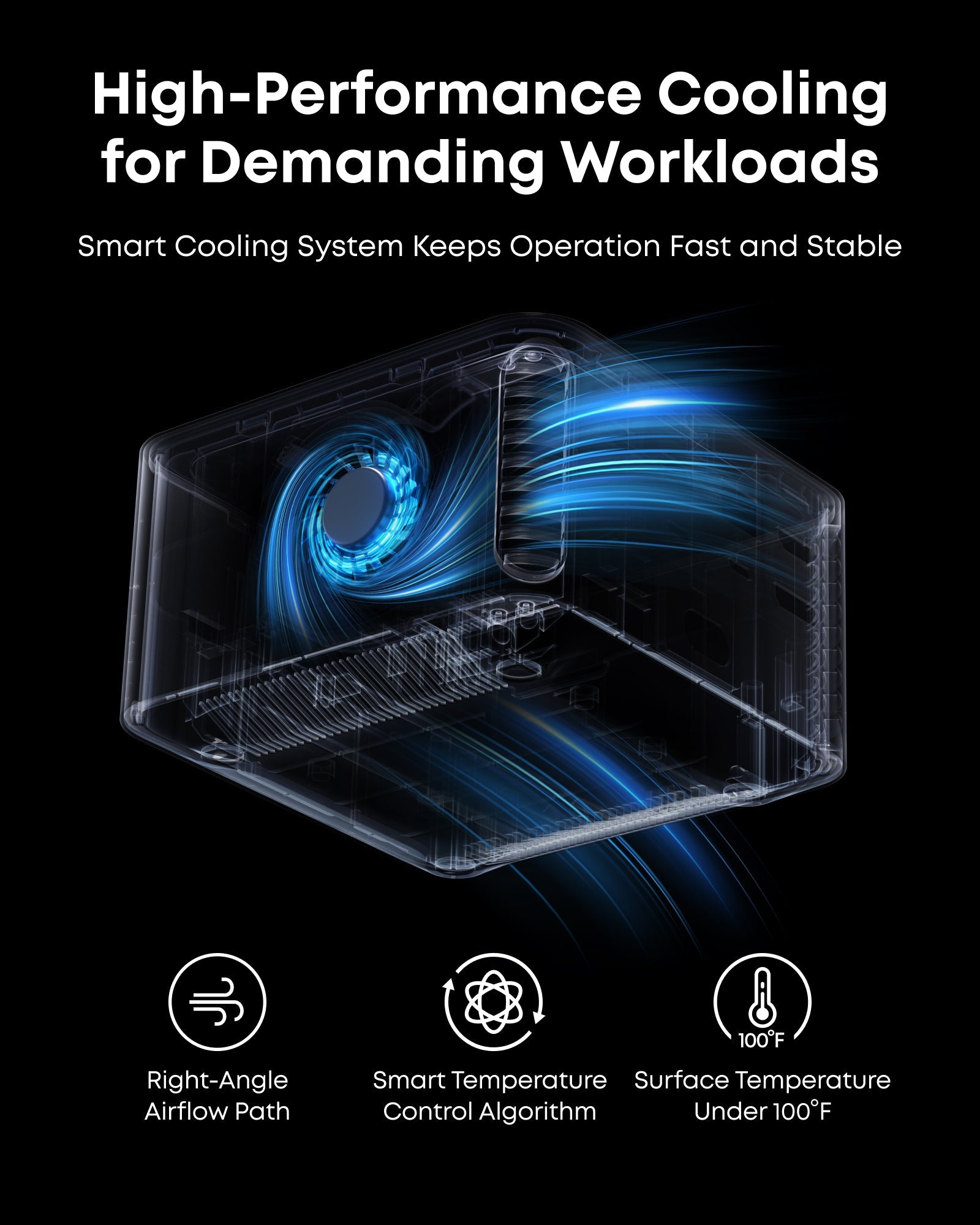

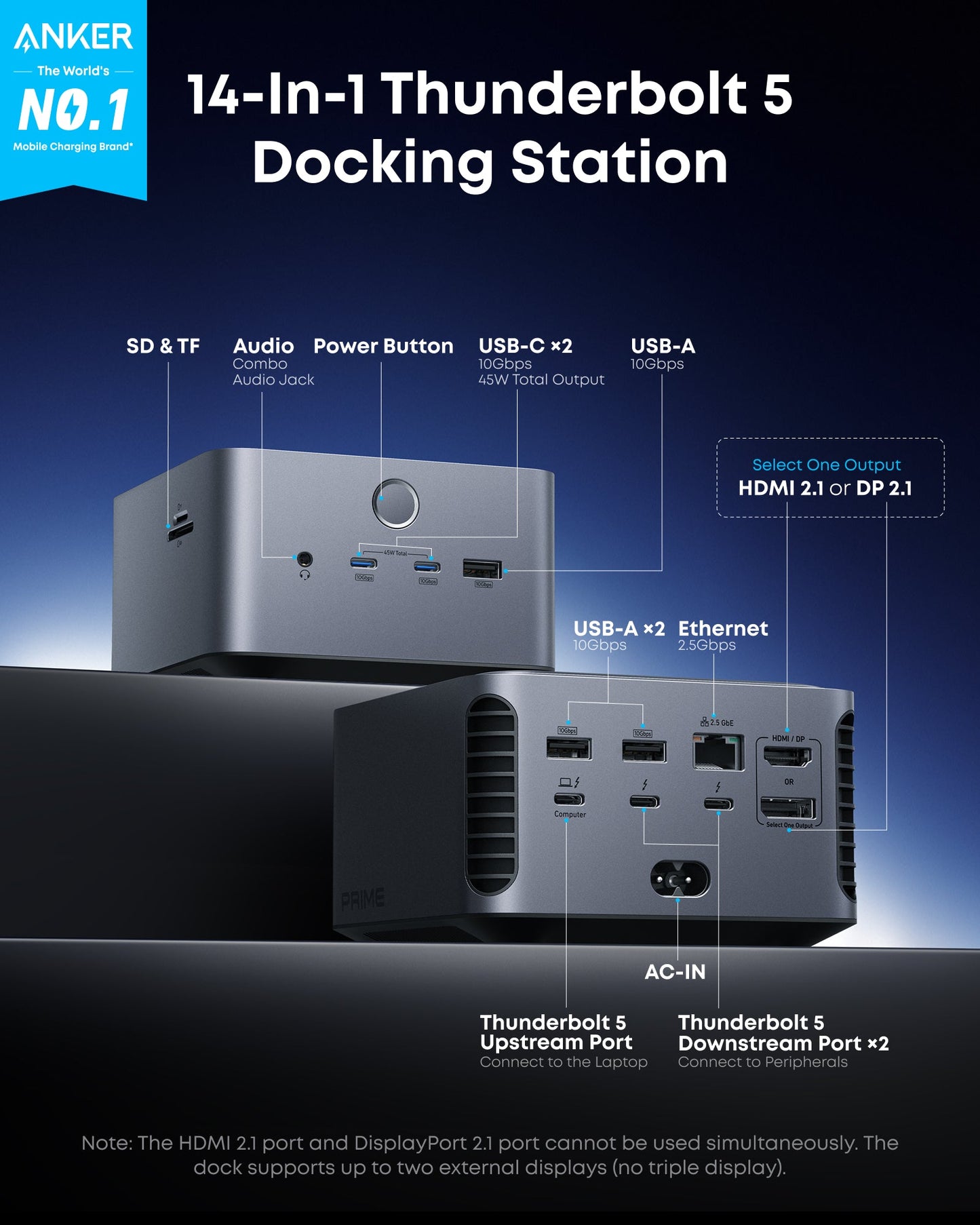

- 14-in-1 Thunderbolt 5 Dock: Equipped with a Thunderbolt 5 upstream port, two Thunderbolt 5 downstream ports, two USB-C ports, three USB-A ports, SD and TF card readers, an AC input, a 2.5Gbps Ethernet port, an audio jack, and an HDMI 2.1 or DisplayPort 2.1 port. It also includes an advanced active cooling system for optimal performance even under full load, preventing overheating.
- The Speed You Need for Large Files: Transfer massive files quickly—move a 150GB file in just 25 seconds with the Thunderbolt 5 port.
- Dual Display Docking Station: Supports one HDMI or DisplayPort and two Thunderbolt 5 downstream video outputs. Delivers up to 8K@60Hz for a single display, or dual 8K@60Hz for Thunderbolt 5 Windows laptops.
- Fast Charge Multiple Devices: Power your devices efficiently with the powerful 140W max Thunderbolt 5 upstream port, supporting the PD 3.1 protocol for optimal charging. The front-facing dual USB-C ports share a total of 45W.
- What You Get: Anker Prime Docking Station (14-in-1, 8K, Thunderbolt 5), 3.3 ft Thunderbolt 5 cable, 6 ft AC power cable, 24-month warranty, safety sheet with QR code for user manual, and our friendly customer service.
What you get
Ready to dock.
Everything you need to connect your Thunderbolt 5 laptop to a full workstation, in the box.
1×Anker Prime TB5 Docking Station
1×Thunderbolt 5 cable (3.3 ft, 80 Gbps, 240W)
1×AC power cable (6 ft)
1×User guide and safety sheet
24MOAnker manufacturer warranty
Common questions
Before you buy.
Real questions from professional workstation buyers. Tap any to expand.
Is this a genuine Anker product?
Yes. Swag House Store is an authorized Anker retailer. Every order ships from our US warehouse with verified authenticity and Anker's full 24-month manufacturer warranty.
Will it work with my MacBook Pro?
Yes for 2025+ MacBook Pro models with Thunderbolt 5 (M4 Pro / M4 Max). Yes at reduced bandwidth for older MacBook Pro M1/M2/M3 Pro/Max via Thunderbolt 4. Standard M1, M2, M3 MacBooks (non-Pro/Max) work but Apple Silicon limits them to one external display. Not compatible with Intel-based MacBooks.
Can I really run dual 8K displays?
Yes, on Windows laptops with Thunderbolt 5 — dual 8K@60Hz via the two downstream Thunderbolt 5 ports. On macOS, single 8K@60Hz or single 6K@60Hz per display (Mac architecture limit, not the dock's limit). HDMI and DisplayPort outputs can't be used simultaneously.
Does it charge my MacBook Pro 16-inch?
Yes. The Thunderbolt 5 upstream port delivers up to 140W via PD 3.1 — enough to fast-charge a MacBook Pro 16" under load. For 14" MacBook Pro and most other USB-C laptops, this is more than enough headroom.
How fast does it ship?
Free US shipping on every order. Orders placed before 2pm CT typically ship same-day from our US warehouse. Standard delivery is 3–7 business days with tracking emailed at booking.
Do you offer financing?
Yes. Affirm financing is available at checkout — as low as $34/mo on this product. 0% APR options for qualifying buyers, otherwise rates from 0–36% APR. Apply in 60 seconds with a soft credit check.
Ready when you are
Build the workstation your laptop deserves.
Thunderbolt 5 speed. Dual 8K display headroom. 140W charging. Compact Mac mini-sized chassis. Anker's 24-month warranty. The flagship dock for professionals who don't compromise.
$399.99
Anker Prime TB5 Docking Station
Free US shipping · Authorized Anker retailer · 24-month manufacturer warranty · 30-day returns · Affirm available
